Clock Restoration Strike Work for Paul Garnier

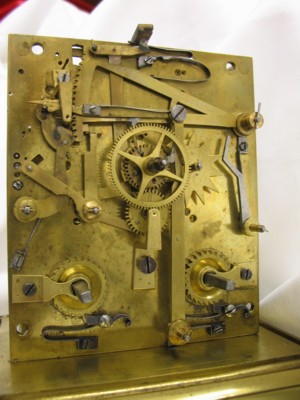

From this...

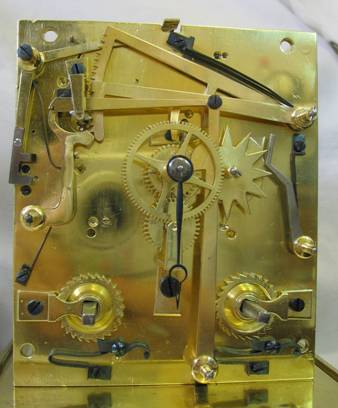

To this

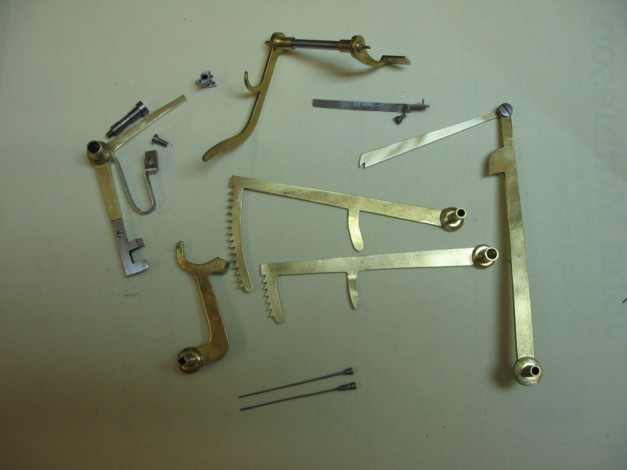

New parts made

  • Quarter and hour racks
  • Flirt piece
  • Gathering pallets x 3, repeat lever and fly lock
  • Bell pump lever and associated parts
  • Rack hook
  • Added piece to gathering cock.
  • Rectified unusual quarter surprise piece
  • Stop work for the striking barrel
  • Bell hammer return springs.
  • Plugged holes previously made cut into the plate.

New parts made for Paul Garnier by Clock Care LtdCad drawings used to assist production of some parts

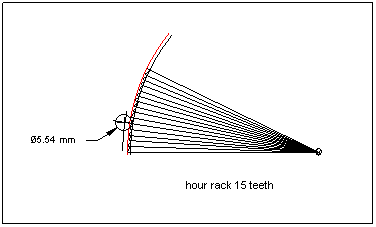

Cad drawings used to assist production of some parts

 Cad drawings used to assist production of some parts

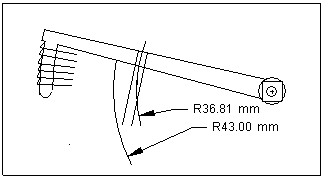

Using the same tooth pitch for both the hour and the quarters, in this case meant that the contact point for the quarter rack had to be closer to the fulcrum, because the steps on the quarter rack are shallow. Meaning the rack tail would not align with the centre of the snail as is commonly the case.

Cad drawings used to assist production of some parts

Blank racks in position to check tooth pitch against a scriber point height gauge.

Blank racks in position to check tooth pitch against a scriber point height gauge.

New stop work

New stop work by Clock Care Ltd
